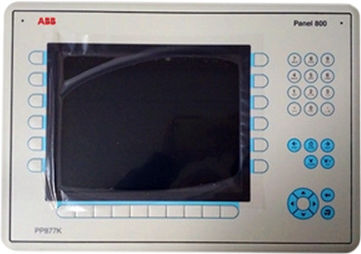

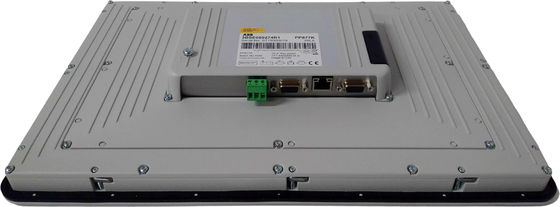

ABB PP877 3BSE069459 Operator Panel 24VDC Compact Product Suite Panel 800 Version 6

Product Details:

Description:

The ABB PP877 is a versatile and high-performance operator panel from the ABB Panel 800 series. it developed to meet the demands of human-machine communication (HMC) by offering a comprehensive set of built-in functions. These include displaying and controlling text, dynamic indication, time channels, alarm handling, and recipe management, ensuring efficient process monitoring and control. Its object-oriented approach simplifies operation, making it intuitive and user-friendly for industrial applications.

Introduction

Display: TFT color touchscreen

Screen Sizes: 7",10.4",15",19",21.5"

Resolution: Varies by screen size

Communication: Ethernet,RS-232/422/485

Processor: ARM Cortex-A8

Memory: 512 MB RAM, 4 GB Flash

Operating System: Windows Embedded Compact 7

Protection Class: lP65 (front)

Operating Temperature: -20°C to +60°Co Mounting: Panel mounting

Power Supply: +24 VDC (18-32 VDC)

Power Consumption: 9.6 W

Protection:IP66/IP20

Operating Temperature: -10°C to +60°Co

Relative Humidity: 5-85% non-condensing

Storage Temperature: -20°C to +70°C

Vibration and Shock: 0.7 G/10 G

Additional Information:

Datasheet Link:PP877.pdf
