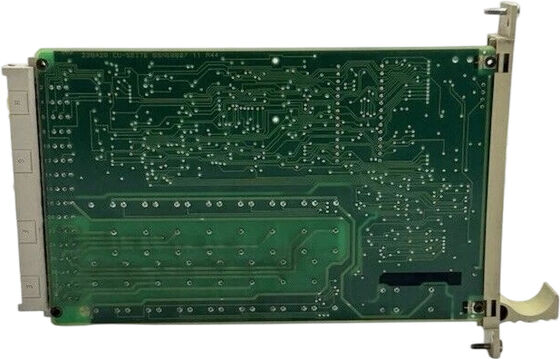

Name: 23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
Brand: Joyoung International Trading Co.,Ltd
SKU: 23BA20
Price: 1500 USD
Availability: InStock

Casa Prodotti Modulo di ABB

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

Dettagli:

Luogo di origine:	Svezia
Marca:	ABB
Certificazione:	COC
Numero di modello:	23BA20

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 pezzo
Prezzo:	1500
Imballaggi particolari:	Originale
Tempi di consegna:	5-8 GIORNI LAVORATIVI
Termini di pagamento:	T/T
Capacità di alimentazione:	10 pezzi al giorno

Contatto

Descrizione di prodotto dettagliata

Nome:	23BA20 GSNE000700R5312	Modello:	23BA20
Pacchetto:	Standard	Garanzia:	12 mesi
peso lordo:	2,2 libbre / 35,2 oz / 1 kg	dimensione dell'imballaggio:	7 "x 7" x 4 "(18 cm x 18 cm x 10 cm)
Tempi di consegna:	1~3 giorni	Qualità:	Marchio 100%
Azione:	Disponibile
Evidenziare:	ABB binary output board 16 channel , ABB module 24-60 VDC , binary output board with warranty

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

Product Specifications

Brand Name	ABB
Model	23BA20
Product ID	GSNE000700R5312
Catalog	Procontrol
Origin	SWEDEN
Dimension	161612cm
Weight	0.5kg
HS Code	8537101190
Payment	T/T
Sales Price	$1500
Warranty	12 months
Lead time	3-5 work days

Product Description

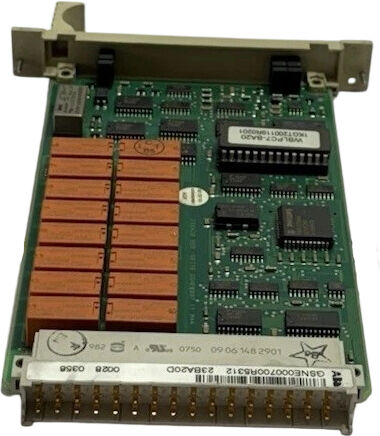

The 23BA20 board features sixteen output relays, organized into two independent groups of eight. Each group shares a common return contact, allowing the output channels to be powered by just two separate process voltage sources. This grouped design simplifies wiring and provides flexible integration into various control system architectures.

Output operation is managed by an integrated I/O microcontroller, the Input-Output Processor (EAP). The EAP activates specific outputs based on command requests received from the Communication Unit's (CMU) central processing module (VAP). It precisely controls the timing of pulse outputs by executing commands based on pre-loaded pulse length values, ensuring accurate and timed control signals.

The board incorporates comprehensive diagnostic and supervision functions for maximum reliability. The EAP performs a read-back of the output pattern before activation to verify commands. During an active output, it continuously monitors the 24V DC supply from the backplane bus that powers the relays. Furthermore, the EAP supervises the actual pulse duration, and any detected error is immediately indicated via onboard LED status indicators.

Additional Information

N/M	N/M
YXU168E	YT204001-JB/1
SDCS-IOE-2C	64018019
DATX 133	3ASC25H219
